PEEK Tweezer

PEEK TWEEZER

MSE SEMI 2025. 11. 23. 11:35



  4-inch Semiconductor Wafer Handling

  • Designed to handle 4 inch semiconductor wafers
  • Withstand up to 130C continuously
  • No glue or metal parts

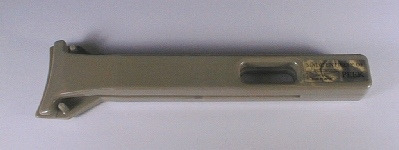

M100-100

Made of PEEK
Wafer edge contact: 5.4mm(Top), 9.5mm(Bottom)
Length: 146mm, Weight: 30g



M110-100

Made of PPS
Wafer edge contact: 5.4mm(Top), 9.5mm(Bottom)
Length: 146mm, Weight: 31g

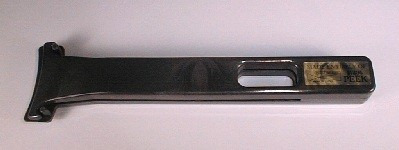

E100-100

Made of Conductive PEEK
Wafer edge contact: 5.4mm(Top), 9.5mm(Bottom)
Length: 146mm, Weight: 30g



5-inch Semiconductor Wafer Handling

  • Designed to handle 5 inch semiconductor wafers
  • Withstand up to 130C continuously
  • No glue or metal parts



M100-125

Made of PEEK
Wafer edge contact: 4.5mm(Top), 9.0mm(Bottom)
Length: 148mm, Weight: 31g

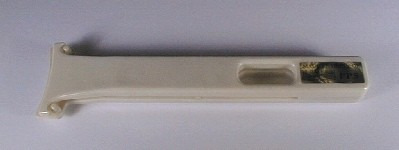

M110-125

Made of PPS
Wafer edge contact: 4.5mm(Top), 9.0mm(Bottom)
Length: 148mm, Weight: 32g

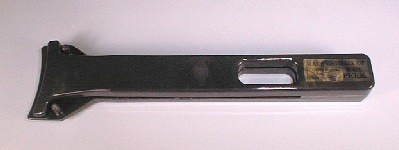

E100-125

Made of Conductive PEEK
Wafer edge contact: 4.5mm(Top), 9.0mm(Bottom)
Length: 148mm, Weight: 32g



     6-inch Semiconductor Wafer Handling

  • Designed to handle 6 inch semiconductor wafers.
  • Withstand up to 130C continuously
  • No glue or metal parts

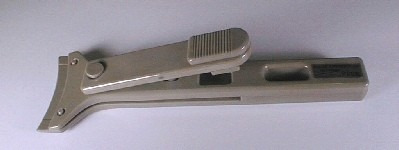

 M100-150L

Less force is required to handle wafers thanks to the lockable lever.
Made of PEEK
Wafer edge contact: 3.0mm(Top), 6.0mm(Bottom)
Length: 185mm, Weight: 71g



M100-150

Made of PEEK
Wafer edge contact: 5.6mm(Top), 8.5mm(Bottom)
Length: 147mm, Weight: 31g



M110-150

Made of PPS
Wafer edge contact: 5.6mm(Top), 8.5mm(Bottom)
Length: 147mm, Weight: 33g



E100-150

Made of Conductive PEEK
Wafer edge contact: 5.6mm(Top), 8.5mm(Bottom)
Length: 147mm, Weight: 32g



       8-inch Semiconductor Wafer Handling

  • Designed to handle 8 inch semiconductor wafers
  • Withstand up to 130C continuously
  • No glue or metal parts

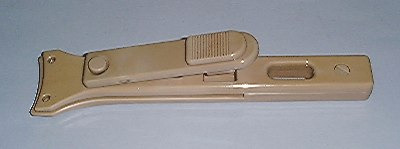

M100-200L

Less force is required to handle wafers thanks to the lockable lever.
Made of PEEK
Wafer edge contact: 3.0mm(Top), 10.0mm(Bottom)
Length: 180mm, Weight: 72g



M100-200

Made of PEEK
Wafer edge contact: 8.0mm(Top), 11.9mm(Bottom)
Length: 147mm, Weight: 32g



M110-200

Made of PPS
Wafer edge contact: 8.0mm(Top), 11.9mm(Bottom)
Length: 147mm, Weight: 33g



E100-200

Made of Conductive PEEK
Wafer edge contact: 8.0mm(Top), 11.9mm(Bottom)
Length: 147mm, Weight: 33g



     12-inch Semiconductor Wafer Handling

  • Designed to handle 12-inch semiconductor wafers
  • Withstands up to 130C continuously
  • No glue or metal parts



M100-300L

Made of PEEK
Wafer edge contact: 10mm(Top), 16mm(Bottom)
Length: 180mm, Weight: 77g


 제품에 대한 문의사항이 있으시면 아래 e-mail, 전화 문의 바랍니다.

MSE : 02-2275-9510     팩스 : 02-2278-5446

msescy@hanmail.net   http://semims.com
